NGP lifting motor YP2


NGP lifting motor YP2



      YP2 series is my company to learn the advantages of similar motors at home and abroad and optimize the design and development of new products, with FM performance, energy saving, starting torque performance, overload capacity, low speed, low noise, vibration, Safe and reliable, beautiful appearance and so on. The power rating and mounting dimensions are fully compliant with the International Electrotechnical Commission (IEC) standard. It can be used in all kinds of transmission devices which need speed regulation. It is widely used in light industry, textile, chemical industry, petroleum, metallurgy, machine tool and water pump. It can realize high precision closed loop operation with high precision sensor. The series of motors for the squirrel cage motor.
1 , the motor under the following conditions can be used normally:
1.1 Ambient air temperature does not exceed 40 ℃.
1.2 Relative humidity≤ 90% .
1.3 Altitude not exceeding 1000m .
2 , the motor rated voltage of 380V , rated frequency of 50Hz , can also be based on the user to determine the rated voltage and frequency. Motor speed range of 3 ~ 100Hz , below the rated frequency below the constant torque output, higher than the rated frequency above the constant power output, in the vector control conditions, the speed range can also be expanded.
3 , the motor for the continuous working system ( S1 ).
4 , connection: 4KW following is the Y connection, 4KW above for theΔconnection.
5 , the motor model description:

structure
      The motor design takes into account the large margin, both to ensure that the motor at high frequencies when the overload capacity and to ensure that the motor in the low- frequency operation constant torque output. Installation size and Y (Y2, Y3) series of the same, easy to use the user. In the non-axial extension of the independent axial fan forced ventilation, high efficiency, low noise, simple structure, to ensure that the motor in the low-speed operation temperature does not exceed the limit, and according to user needs to install the encoder, tachometer and brake And other auxiliary equipment.
     In the design of the stator, rotor slot and stator winding distribution made a special consideration, so that the motor can adapt to SPWM and PWM inverter power supply status, in order to obtain a more appropriate inductance, to suppress and reduce the harmonic and its cause Of the high-order harmonic generated by the adverse effects.
1, protection of the motor enclosure class is IP54, also manufactured according to user needs.
2, cooling the motor cooling fan is independent cooling (IC416), supporting the cooling fan as shown in Table 1, it can be made as additional cooling.
Motor seat number 100 112 132 160 180 200 225 250 280 315
Fan power (W) 60 60 60 80 80 230 230 230 370 450
Fan voltage 380V three-phase
3, the motor structure and installation type IMB3.
4, the insulation level of the motor insulation class for the F-class, insulation structure with resistance to high-order harmonic impact.
5, the junction box junction box is located at the top of the base.
Technical data
Technical data sheet
model Power
(kW)		 Rated speed
(r / min)		 Rated current (A) Rated efficiency (%) Rated power factor
(cosφ)		 Rated torque
(Nm)		 Stall torque Maximum torque Weight
(kg)
Rated torque Rated torque
Synchronous speed 1500r / min (4 pole) 50Hz
112M-4 4.0 1440 8.8 84.5 0.83 26.5 2.45 3.0 49
132S-4 5.5 1440 11.6 85.5 0.85 36.5 2.53 3.0 67
132M-4 7.5 1440 15.4 87 0.83 49.7 2.55 3.0 80
160M-4 11 1460 22.6 88 0.84 71.9 2.58 3.2 124
160L-4 15 1460 30.3 88.5 0.86 98.1 2.56 3.1 147
180M-4 18.5 1470 35.9 91 0.87 120.1 2.48 3.1 173
180L-4 twenty two 1470 42.5 91.5 0.87 142.9 2.52 3.3 197
200L-4 30 1470 56.8 92.2 0.87 194.9 2.60 3.2 255
225S-4 37 1480 69.8 91.8 0.87 238.7 2.45 3.1 305
225M-4 45 1480 84.2 92.3 0.88 290.4 2.43 3.2 333
250M-4 55 1480 102.5 92.3 0.88 354.9 2.55 3.3 400
280S-4 75 1480 139.7 92.7 0.88 483.9 2.51 3.3 560
280M-4 90 1480 164.3 93.5 0.89 580.7 2.52 3.2 660
315S-4 110 1480 201 93.5 0.89 709.8 2.62 3.1 1000
315M-4 132 1490 240 94 0.89 846.0 2.58 3.2 1100
315L1-4 160 1490 283 94.5 0.89 1025.5 2.56 3.1 1140
315L2-4 200 1490 362 94.5 0.89 1281.8 2.59 3.1 1220
Synchronous speed 1000r / min (6 pole) 50Hz
112M-6 2.2 940 5.61 80.5 0.72 22.3 2.42 3.0 45
132S-6 3.0 960 7.23 83 0.76 29.8 2.50 3.0 65
132M1-6 4.0 960 9.40 84 0.76 39.8 2.52 3.1 75
132M2-6 5.5 960 12.6 85.3 0.78 54.7 2.51 3.1 84
160M-6 7.5 970 17.0 86 0.76 73.8 2.55 3.2 121
160L-6 11 970 24.6 87 0.76 108.3 2.51 3.0 146
180L-6 15 970 31.4 89.5 0.78 147.7 2.49 3.2 186
200L1-6 18.5 970 37.7 89.8 0.83 182.1 2.58 3.1 235
200L2-6 twenty two 970 44.6 90.2 0.83 216.6 2.56 3.1 260
225M-6 30 980 59.5 90.2 0.85 292.2 2.48 3.3 302
250M-6 37 980 72 90.8 0.86 360.5 2.51 3.2 400
280S-6 45 980 85.4 92 0.86 438.5 2.53 3.1 533
280M-6 55 980 104.9 92 0.88 536.0 2.55 3.0 590
315S-6 75 990 141 92.8 0.87 723.5 2.58 3.1 990
315M-6 90 990 168 93.0 0.87 868.2 2.56 3.1 1050
315L1-6 110 990 205 93.5 0.87 1061.1 2.53 3.2 1110
315L2-6 132 990 246 93.8 0.87 1273.3 2.54 3.1 1190
Table II
model Power
(kW)		 Rated speed
(r / min)		 Rated current (A) Rated efficiency (%) Rated power factor
(cosφ)		 Rated torque
(Nm)		 Stall torque Maximum torque Weight
(kg)
Rated torque Rated torque
Synchronous speed 750 r / min (8 pole) 50Hz
132S-8 2.2 710 5.8 80 0.71 29.6 2.45 2.9 64
132M-8 3.0 710 7.7 82 0.72 40.3 2.48 2.9 75
160M1-8 4.0 720 9.9 84 0.69 53.1 2.51 3.0 110
160M2-8 5.5 720 13.3 85 0.73 72.9 2.50 3.0 121
160L-8 7.5 720 17.7 86 0.75 99.5 2.50 3.1 147
180 L-8 11 730 25.1 87 0.75 143.9 2.55 3.2 182
200L-8 15 730 34.1 88 0.76 196.2 2.58 3.1 290
225S-8 18.8 730 41.3 89.5 0.76 242.0 2.45 3.1 276
225M-8 twenty two 730 47.6 90.0 0.78 283.9 2.45 3.2 307
250M-8 30 740 93.2 91.0 0.77 387.1 2.52 3.1 522
280S-8 37 740 78.2 91.0 0.77 477.5 2.54 3.3 522
280M-8 45 740 93.2 91.7 0.78 580.7 2.52 3.2 578
315S-8 55 740 111 92.0 0.80 709.7 2.56 3.1 830
315M-8 75 740 150 92.5 0.81 967.9 2.55 3.2 930
315L1-8 90 740 179 93.0 0.82 1161.5 2.58 3.2 1030
315L2-8 110 740 219 93.3 0.82 1419.5 2.59 3.2 1200
Synchronous speed 600r / min (10 pole) 50Hz
315S-10 45 590 99 91.5 0.74 728.4 2.51 3.1 900
315M-10 55 590 120 92.0 0.74 890.2 2.55 3.1 1110
315L2-10 75 590 160 92.5 0.75 1213.9 2.50 3.1 1190

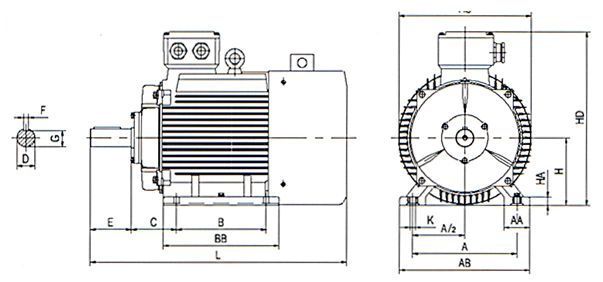

Installation and external dimensions
B3 mounting, base with bottom cover without flange

Frame number Installation dimensions Dimensions
A A / 2 B C D E F G H K AA AB AC BB HA HD L
112M 190 95 140 70 28 60 8 twenty four 112





0
-0.5		 12 50 245 240 180 15 300 520
132S 216 108 140 89 38 80 10 33 132 55 280 275 200 18 345 580
132M 178 238 620
160M 254 127 210 108 42 110 12%
