NGP lifting motor TYCP

TYCP series motor with rare earth NdFeB permanent magnet material excitation , with the inverter power supply, with a large starting torque, wide speed range, compact structure, small size, light weight, low noise, power factor and high efficiency, to meet GB30253- 2013 energy efficiency standards, is the energy efficient air compressor ideal power choice.

1, the motor under the following conditions can be used normally:

1.1 ambient air temperature does not exceed 40 ℃ (general environment, F level), 60 ℃ (metallurgical environment, H level);

1.2 relative humidity ≤ 90%;

1.3 no more than 1000m above sea level;

1.4 frequent start, brake (electrical or mechanical) and reverse.

2, the motor rated voltage of 380V, can also be based on user requirements.

3, the motor reference work system: S1.

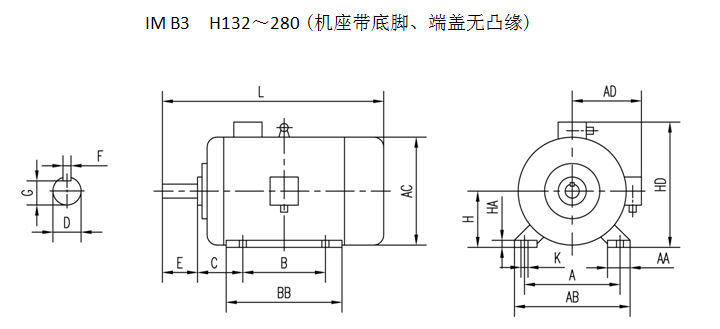

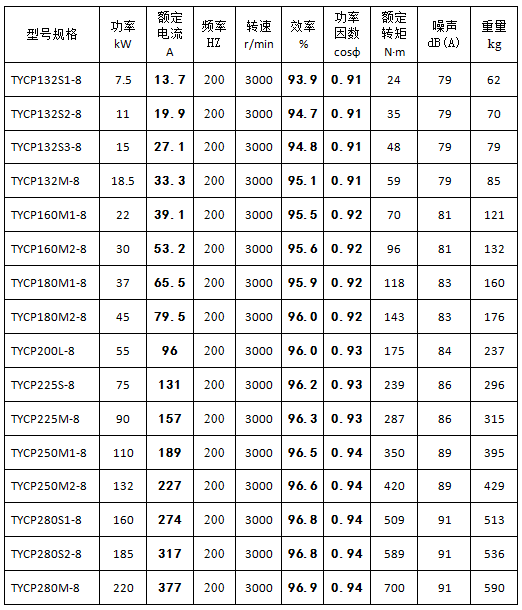

4, model description
