NGP lifting motor YZPE

YZPE series of electromagnetic brake frequency control motor is composed of YZP series motor plus DC electromagnetic brake, with overload capacity, high mechanical strength, compact structure, adjustable braking torque, easy control and easy maintenance and other characteristics , suitable for driving the Type of lifting and metallurgical machinery or other similar equipment. The motor has a disc brake, so that the motor has a good braking effect. YZP, YZPE series for the cage motor .

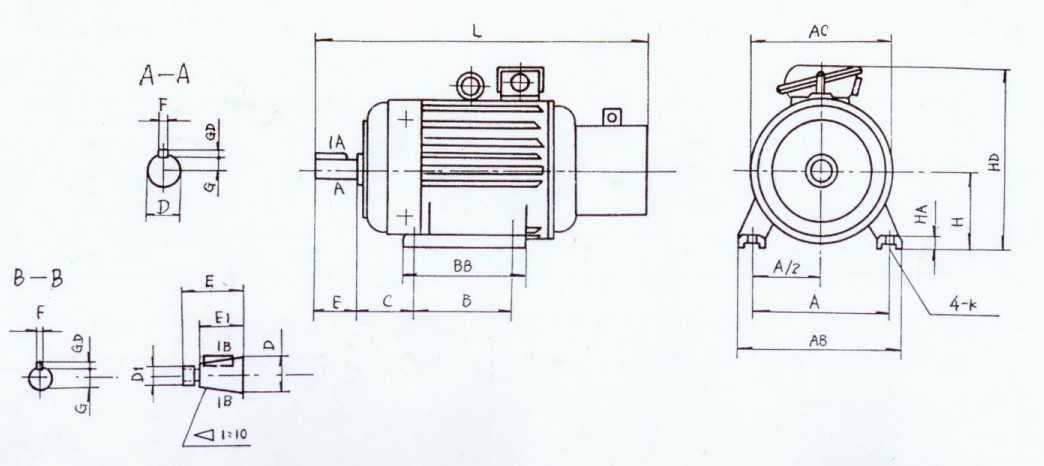

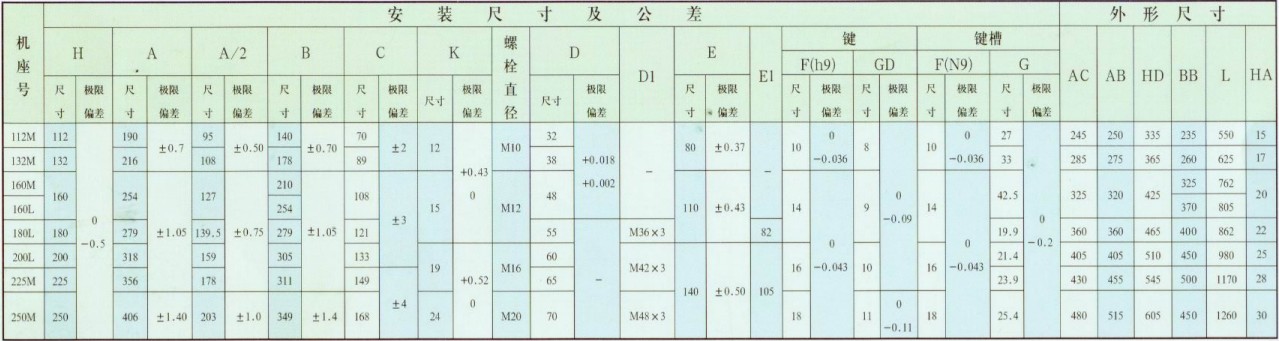

1.IM1001, IM1003 and IM1002, IM1004 horizontal installation, the base with a foot, the end of the flange without the motor YZPE112 ~ 250

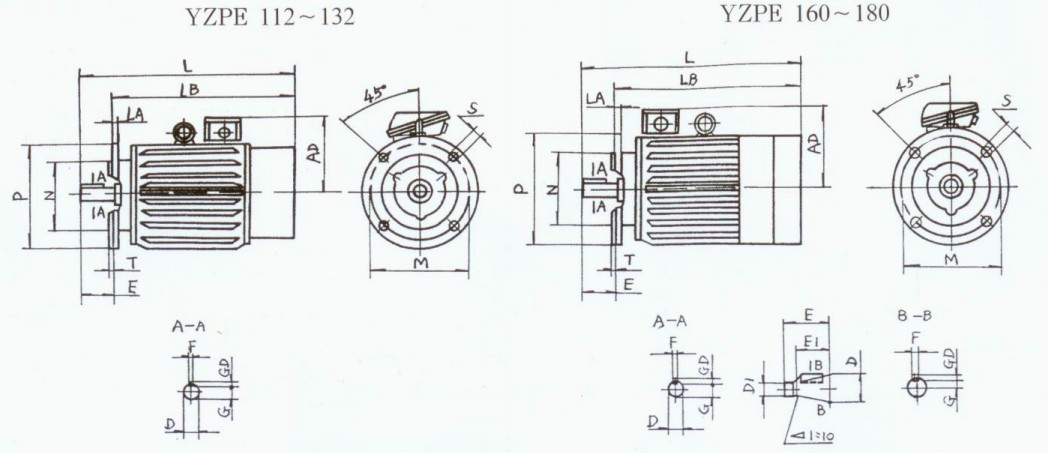

2.IM3001 and IM3003 horizontal installation, the base without the foot, the cover with the flange of the motor YZPE112 ~ 180

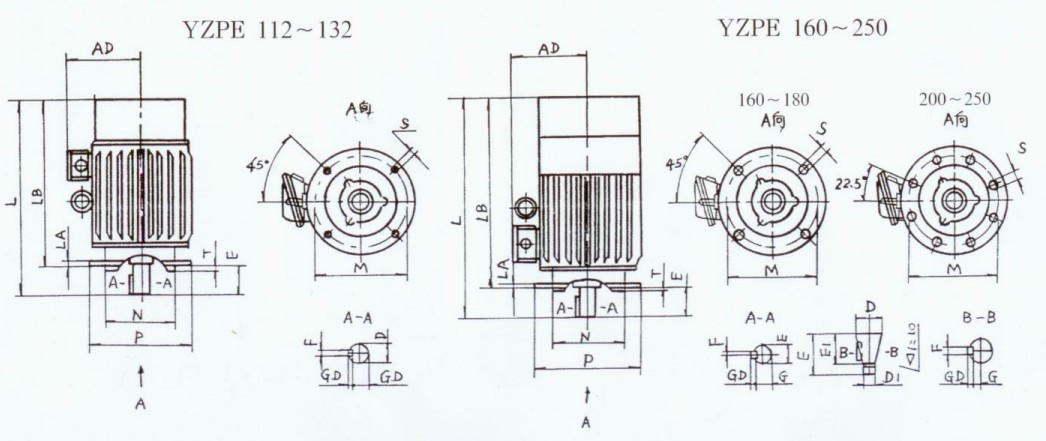

3. IM3011, IM3013 vertical installation, the base without the foot, the cover with the flange of the motorYZPE112 ~ 180
