Jiaozuo Hongfa Windproof Brake YJGQ type hydraulic clip rail
YJGQ type hydraulic clip rail device
Conditions of use:
Ambient temperature: 0 ℃ -40 ℃.
Hydraulic station drive power: generally used for three-phase AC380V, 50Hz (for other voltage, please specify when ordering).
Hydraulic station control power: AC220V, 50Hz
limit switching power supply: AC125V -250V.
Applicable work: intermittent, short-term, lower frequency.

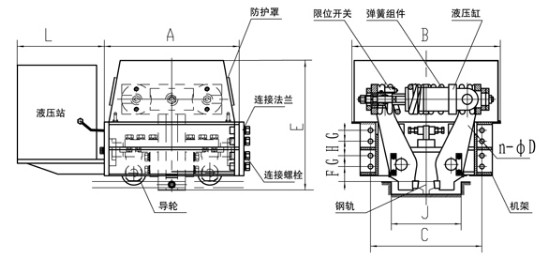

Technical parameters and dimensions table
Unit: (mm)
|
model |
Clamping force (KN) |
A |
B |
C |
N-OD |
E |
F |
G |
H |
J |
L |
|
YJGQ-16 |
160 |
820 |
870 |
630 |
6-026 |
790 |
110 |
80 |
80 |
> 310 |
650 |
|
YJGQ-20 |
200 |
820 |
870 |
630 |
6-026 |
790 |
110 |
80 |
80 |
> 310 |
650 |
|
YJGQ-25 |
250 |
930 |
890 |
720 |
8-030 |
835 |
97 |
70 |
93 |
> 380 |
650 |
|
YJGQ-31 |
315 |
930 |
890 |
720 |
8-0 30 |
835 |
97 |
70 |
93 |
> 380 |
650 |
|
YJGQ-40 |
400 |
1100 |
1100 |
830 |
8-CD 33 |
1050 |
125 |
100 |
100 |
> 410 |
-705 |
|
YJGQ-60 |
600 |
1250 |
1250 |
830 |
8-040 |
1100 |
125 |
100 |
100 |
> 430 |
~ 705 |
Clip rail and rail hydraulic station supporting table
Unit: (mm)
|
Clipboard model |
YJGQ-16 |
YJGQ-20 |
YJGQ-25 |
YJGQ-31 |
YJGQ-40 |
YJGQ-60 |
|
Rail model |
Qu100, Qu80, Qu70, P50 |
Qu80, Qu100, Qu120 |
Qu120 |
|||
|
Match the hydraulic station |
YZ (J) -13-4 |
YZ (J) -10-6 |
YZ (J) -13-6 |
YZ (J) -14-9 |
YZ (J) -14-9 |
YZ (J) -15-10 |
