Jiaozuo Hongfa YDF (P) series of power hydraulic ventilation

Jiaozuo Hongfa YDF (P) series of power hydraulic ventilation ventilator

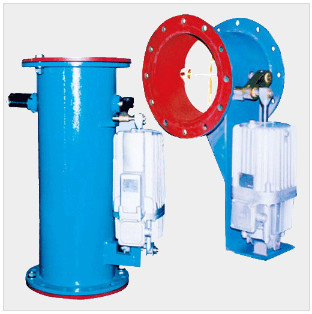

YDF (P) series of power hydraulic ventilation ventilator

Overview: YDF series of electric hydraulic ventilation ventilator is designed to improve the efficiency of iron ore blast furnace feeding system dust removal, hot metal cans of the flue gas dust, sintering plant to improve the high concentration of dust and improve the design of complete sets of equipment. In the old blast furnace technology transformation and new blast furnace concentrated dust field can be widely used.

Main features:
action fast: power open time is about 1.0 seconds, power off time is about 0.8 seconds.
Participation Lifetime: Power source for the Ed pusher, rotating parts from the self-lubricating bearings, the main structure of the selection of high-quality steel, high strength, long life
Adaptability: electrical system enclosure protection class IP65, ambient temperature -20 ~ ℃ ~ 50 ℃.
Power: three-phase AC 380V, 50Hz.
Easy installation and installation: can be installed in the vertical pipeline and horizontal piping, but also to adapt to the installation of inclined piping. And with the same connection flange two. No electrical circuit design and controller, directly with the main motor into the line can be connected in parallel.

Dimension table

Unit (mm)

model	Pusher model	A	A1	Dg	D	Lmax	Bmax	Weight (kg)
YTF-300	Ed50 / 12	515	900	309	440	370	220	150
YTF-400	Ed50 / 12	515	900	410	540	420	270	180
YTF-500	Ed80 / 12	530	960	513	645	470	320	230
YTF-600	Ed80 / 12	530	960	614	755	520	400	270
YTF-700	Ed121 / 12	705	1150	704	860	570	440	350
YTF-800	Ed121 / 12	705	1150	804	975	620	500	420

Note: specific models, structural dimensions to retain the right to change.

Dimensions and performance parameters Unit (mm):

model	Pusher model	A	A1	Dg	D	B	Lmax	Weight (kg)
YDFP-300	Ed50 / 12	515	316	309	440	630	390	100
YDFP-400	Ed50 / 12	515	416	410	540	650	460	150
YDFP-500	Ed80 / 12	530	520	513	645	670	520	170
YDFP-600	Ed80 / 12	530	620	614	755	670	580	230
YDFP-700	Ed121 / 12	705	350	704	860	840	670	250
YDFP-800	Ed121 / 12	705	350	804	975	840	740	310
YDFP-1000	Ed201 / 12HS	705	350	1004	1175	840	670	420
YDFP-1200	Ed201 / 12HS	705	350	1204	1375	840	740	500
YDFP-1400	Ed301 / 12HS	705	300	1404	1575	840	1080	580
YDFP-1500	Ed301 / 12	705	300	1504	1685	840	1105	736
