Jiaozuo Hongfa Drive DYT series electro-hydraulic putter

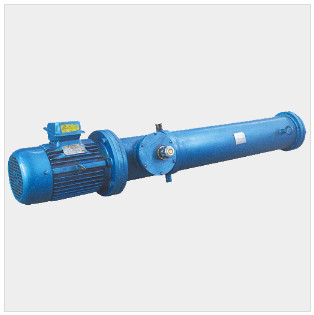

DYT series electro-hydraulic putter

Electro-hydraulic push-off: DYT series of electro-hydraulic putter is a set of machines, electricity, liquid as one of the hydraulic drive robot, suitable for the need to reciprocate push straight (or reciprocating angle) movement, can also be used for the need to rise, Clamping the work of the site, and to achieve long-range dangerous areas of centralized or automatic control. Has been widely used in metallurgy, mining, electricity, coal, machinery, transportation, food, chemicals, cement, water conservancy, building materials, transportation and other departments, is a general power source.
Working principle: Electro-hydraulic putter is a new type of flexible transmission mechanism of machine, electric and liquid. It is composed of actuator (cylinder), control mechanism (hydraulic control valve group) and power source (pump motor, etc.). Site installation space and user use Electro-hydraulic putter can have a variety of structural forms (specifically see electro-hydraulic push rod shape installation dimension drawings, can also be customized according to user requirements style). The motor is driven by positive and negative drive is to the hydraulic pump positive and negative output pressure oil, the hydraulic control valve sent to the cylinder, to achieve the piston rod reciprocating motion.

Electro-hydraulic push the structure performance:
Hydraulic control valve group mainly by the relief valve, suction check valve, check valve, speed control valve (user requirements), hydraulic check valve (hydraulic lock) and other components, but also according to the working characteristics of electro-hydraulic putter, Design of different functions of the oil combination valve, to meet their work requirements. There are generally self-locking, pullback self-locking and push-pull are self-locking; speed can be adjustable speed type, not adjustable type; electro-hydraulic putter working angle level push, push up (including oblique), push down (Including oblique) and so on several.
Electro-hydraulic putter has the following advantages:
(1) compact structure, easy installation, occupy a small space, easy maintenance.
(2) can be loaded with load, with overload protection.
(3) loop set two-way hydraulic lock, can be stopped within the specified range of any position and self-locking, and maintain the output force unchanged.
(4) push pull, speed (user requirements) stepless adjustable, driving force range is very wide.
(5) for some power, putter self-locking, to avoid accidents.
(6) the use of full hydraulic drive, action sensitive, smooth operation, can effectively buffer the external impact, stroke control accuracy (0.5mm ≧).
(7) mechanical and electrical integration of the whole closed structure, working oil circulation in the closed steel cylinder without pressure, small size, no oil, in the harsh working environment, no dust, no water, the internal non-rust, long lasting.

DYT performance parameters

model		Rated thrust (kgf)		Rated speed		Motor power (kw)	Stroke manufacturing range (mm)	Speed Manufacturing Range (mm)
model		thrust	pull	Push fast	Pull speed	Motor power (kw)	Stroke manufacturing range (mm)	Speed Manufacturing Range (mm)
DYT performance parameters	100-	100	75	70/110/185	90/145/245	0.55 / 0.55 / 0.55	5-800	0-250
	300-	300	200	45/70/115	65/100/145	0.55 / 0.55 / 0.75	5 ~ 1000	0-250
	450-	450	300	45/70/115	65/100/145	0.55 / 0.75 / 0.75	5 ~ 1000	0-250
	750-	750	500	45/70/100	65/100/165	0.75 / 1.1 / 1.1	5 ~ 1500	0-150
	1000-	1000	700	45/70/100	65/100/165	1.1 / 1.5 / 2.2	5 ~ 1500	0-150
	1750-	1750	1300	45/70/100	65/100/165	1.5 / 2.2 / 2.2	5-1500	0-150
	2500-	2500	1900	36/60/97	53/90/144	1.5 / 2.2 / 3.0	5 ~ 2000	0-100
	3000-	3000	2200	45/70	68/108	2.2 / 3.0	5 ~ 2500	0-100
	4000-	4000	3000	35/55	53/85	2.2 / 3.0	5 ~ 2500	0 ~ 80
	5000-	5000	3800	30/45	39/63	2.2 / 3.0	5-2500	0 ~ 60
	6000-	6000	4500	30/45	33/52	3.0 / 4.0	5 ~ 3000	0 ~ 60
	8000-	8000	6500	25/38	33/47	3.0 / 4.0	5 ~ 3000	0 ~ 50
	10000-	10000	7700	25/38	33/47	4.0 / 5.5	5 ~ 3000	0 ~ 50
	15000-	15000	11500	24/33	33/42	5.515.5	5 ~ 3000	0 ~ 33
	20000-	20000	16000	twenty three	28	5.5	5 ~ 3000	0 ~ 23

Overall external electro-hydraulic push rod Model Example: DYTZW450-400 / 45 Unit: (mm)

model		Thrust kg	Push speed mm / s	Outline mounting dimensions
model		Thrust kg	Push speed mm / s	Lc	Lcl	L	L1	L2	L3	L4	D	D1	D2	D3	D	D1	D2	M	N.	E	F	G	B
DYTZ	100-	100	70/110/185	323 + S	676 + S	776 + S	17	27	322	246	020	14	030	010	146	200	175	230	180				160
	300-	300	45/70/115	341 + S	686 + S	801 + S	twenty four	30	322	246	020	18	040	012	146	200	175	230	180				160
	450-	450	45/70/115	341 + S	686 + S	801 + S	twenty four	30	322	246	020	18	040	012	146	200	175	230	180				160
	750-	750	45/70/100	385 + S	714 + S	869 + S	30	45	325	246	030	25	060	020	146	200	175	250	180				160
	1000-	1000	45/70/100	385 + S	729 + S	884 + S	30	45	325	261	030	25	060	020	168	200	195	250	180				160
	1750-	1750	45/70/100	385 + S	745 + S	900 + S	30	45	331	286	030	25	060	020	168	200	195	250	180				160
	2500-	2500	60/97	385 + S	775 + S	930 + S	30	45	331	316	030	30	070	030	168	250	215	250	180				160
	3000-	3000	45/70	395 + S	775 + S	950 + S	40	50	331	316	030	30	070	030	168	250	215	250	180				160

Example: DYTZ750-500 / 45 Unit: (mm)

model		Outline mounting dimensions
model		Lc	Lcl	L	L1	L2	L3	L4	D	D1	D2	D3	D	D1	D2	M	N.	E	F	G	B
DYTZ	100-	331 + S	664 + S	764 + S	17	27	199	246	020	14	030	010	146	200	175	230	180				160
	300-	339 + S	670 + S	785 + S	twenty four	30	199	246	020	18	040	012	146	200	175	230	180				160
	450-	339 + S	670 + S	785 + S	twenty four	30	199	246	020	18	040	012	146	200	175	230	180				160
	750-	373 + S	689 + S	844 + S	30	45	199	246	030	25	060	020	146	200	175	250	180				160
	1000-	373 + S	710 + S	865 + S	30	45	199	261	030	25	060	020	168	200	175	250	180				160
	1750-	373 + S	735 + S	890 + S	30	45	199	286	030	25	060	020	168	200	195	250	180				160
	2500-	373 + S	735 + S	890 + S	30	45	199	286	030	25	060	020	168	200	195	250	180				160
	3000-	383 + S	769 + S	944 + S	40	50	199	316	030	30	070	030	168	300	215	250	180				160
	4000-	383 + S	788 + S	963 + S	40	50	199	316	040	30	070	030	180	300	215	290	210				160
	5000-	383 + S	798 + S	973 + S	40	50	199	316	040	30	070	030	180	300	215	290	210				160
	6000-	388 + S	798 + S	986 + S	42.5	55	199	316	050	35	075	035	245	300	215	330	250				160
	8000-	388 + S	808 + S	1003 + S	42.5	55	199	316	050	35	075	035	245	300	215	330	250				160
	10000-	388 + S	835 + S	1022 + S	42.5	55	199	336	050	35	075	035	299	300	240	354	254				200
	15000-	398 + S	907 + S	1107 + S	50	60	199	391	060	45	085	040	325	350	275	354	254				200
	20000-	398 + S	907 + S	1107 + S	50	60	199	391	060	45	085	040	325	350	275	395	295				200

(Model example: DYTPX450-500 / 45) Unit: (mm)

model		Thrust kg	Push speed mm / s	Outline mounting dimensions
model		Thrust kg	Push speed mm / s	Lc	Lcl	L	L1	L2	L3	L4	D	D1	D2	D3	D	D1	D2	M	N.	E	F	G	B
DYTZ	100-	100	70/110/185	281 + S	128 + S	318 + S	17	27	308	246	020	14	030	010	146	200	175	20	70	190	336	146	160
	300-	300	45/70/115	299 + S	138 + S	343 + S	twenty four	30	308	246	020	18	040	012	146	200	175	20	70	190	336	146	160
	450-	450	45/70/115	299 + S	138 + S	343 + S	twenty four	30	308	246	020	18	040	012	146	200	175	20	70	190	336	146	160
	750-	750	45/70/100	353 + S	148 + S	413 + S	30	45	315	246	030	25	060	020	146	200	175	30	80	190	336	146	160
	1000-	1000	45/70/100	353 + S	148 + S	413 + S	30	45	315	261	030	25	060	020	168	200	175	30	80	190	336	146	160
	1750-	1750	60/97	353 + S	148 + S	413 + S	30	45	325	286	030	25	060	020	168	200	195	30	80	190	336	146	160
	2500-	2500	45/70	353 + S	148 + S	413 + S	30	45	325	286	030	25	060	020	168	200	195	30	80	200	359	159	160
	3000-	3000	35/55	363 + S	148 + S	433 + S	40	50	331	316	030	30	070	030	168	250	215	30	80	200	359	159	160
	4000-	4000	30/45	383 + S	158 + S	463 + S	40	50	331	316	040	30	070	030	180	250	215	40	90	240	420	180	160
	5000-	5000	25/40	393 + S	168 + S	473 + S	40	50	334	316	040	30	070	030	180	250	215	40	90	240	420	180	160
	6000-	6000	25/38	403 + S	168 + S	496 + S	42.5	55	334	316	050	35	075	035	219	250	215	40	90	260	475	219	160
	8000-	8000	25/30	413 + S	178 + S	506 + S	42.5	55	341	316	050	35	075	035	219	250	215	40	90	260	475	219	160
	10000-	10000	24/33	413 + S	178 + S	506 + S	42.5	55	341	336	050	35	075	035	219	250	240	50	100	260	479	219	200
	15000-	15000	twenty three	438 + S	188 + S	548 + S	50	60	348	391	060	45	085	040	245	300	275	56	100	320	565	245	200
	20000-	20000	18	458 + S	208 + S	568 + S	50	60	348	391	060	45	085	040	300	300	275	60	100	320	620	300	200

(Model example: DYTPD450-500 / 45) Unit: (mm)

model		Thrust kg	Push speed mm / s	Outline mounting dimensions
model		Thrust kg	Push speed mm / s	Lc	Lcl	L	L1	L2	L3	L4	D	D1	D2	D3	D	D1	D2	M	N.	E	F	G	B	N1
DYTZ	100-	100	70/110/185	211 + S	128 + S	228 + S	17	27	308	246	020	14	030	010	146	200	175	220	160	190	336	146	160	236
	300-	300	45/70/115	229 + S	138 + S	253 + S	twenty four	30	308	246	020	18	040	012	146	200	175	220	160	190	336	146	160	236
	450-	450	45/70/115	229 + S	138 + S	253 + S	twenty four	30	308	246	020	18	040	012	146	200	175	220	160	190	336	146	160	236
	750-	750	45/70/100	273 + S	148 + S	303 + S	30	45	315	246	030	25	060	020	146	200	175	225	165	190	336	146	160	236
	1000-	1000	45/70/100	273 + S	148 + S	303 + S	30	45	315	261	030	25	060	020	168	200	175	225	165	190	336	146	160	236
	1750-	1750	60/97	273 + S	148 + S	303 + S	30	45	325	286	030	25	060	020	168	200	195	225	165	190	336	146	160	236
	2500-	2500	45/70	273 + S	148 + S	303 + S	30	45	325	286	030	25	060	CP 20	168	200	195	242	182	200	359	159	160	259
	3000-	3000	35/55	283 + S	148 + S	323 + S	40	50	331	316	030	30	070	030	168	250	215	242	182	200	359	159	160	259
	4000-	4000	30/45	293 + S	158 + S	333 + S	40	50	331	316	040	30	070	030	180	250	215	290	210	240	420	180	160	320
	5000-	5000	25/40	303 + S	168 + S	343 + S	40	50	334	316	040	30	070	030	180	250	215	290	210	240	420	180	160	320
	6000-	6000	25/38	313 + S	168 + S	356 + S	42.5	55	334	316	050	35	075	035	219	250	215	330	250	260	475	219	160	375
	8000-	8000	25/30	323 + S	178 + S	365 + S	42.5	55	341	316	050	35	075	035	219	250	215	330	250	260	475	219	160	375
	10000-	10000	24/33	323 + S	178 + S	365 + S	42.5	55	341	336	050	35	075	035	219	250	240	354	254	260	479	219	200	379
	15000-	15000	twenty three	338 + S	188 + S	388 + S	50	60	348	391	060	45	085	040	245	300	275	354	254	320	565	245	200	465
	20000-	20000	18	358 + S	208 + S	408 + S	50	60	348	391	060	45	085	040	300	300	275	395	295	320	620	300	200	520
