Jiaozuo Hongfa Drive DKZ type electromagnetic drum brake power box



DKZ type electromagnetic drum brake power box

Overview:
DKZ-110, DKZ-220 electromagnetic brake power box is my company ZWZA and ZWZ3 series brake power box, according to user requirements when ordering special instructions, conventional products without power box.

Conditions of use:
Ambient temperature: -10 ℃ -40 ℃.
The altitude of the installation site is in accordance with: GB / T14048.1-2000.
Location: The monthly average relative humidity of the wettest month is no more than 90%.
There should be no flammable and explosive around the power box and corroded, damaging the insulated gas and conductive dust.

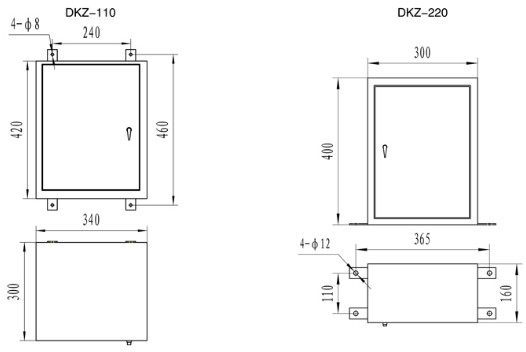

model	DKZ-110			DKZ-220
voltage	380V 50HZ			380V 50HZ
The output voltage	DC 110V			DC 340V / 170V
Maximum power	ZW Z-400	ZW Z-500	ZW Z-600	2000W
	1000W	1500W	2000W
Protection level	IP 44			IP 44
weight	About 10-20Kg			About 8Kg
