Jiaozuo Hongfa SH series hydraulic failure protection brake

Jiaozuo Hongfa SH series hydraulic failure protection brake



Overview: SE, SH, SP series failure protection disc brakes and drum brakes compared with the structure is compact, large braking force, easy installation, it is mainly used for lifting, transportation, metallurgy, mining, ports, construction machinery, Cables, sling equipment, wind turbines, textile machinery and other industries supporting a variety of mechanical drive mechanical brake or slow down.

Conditions of use:
Ambient temperature: -20 ℃ -50 ℃. There should be no flammable, explosive gas in the surrounding working environment.
Air relative humidity of not more than 90%.
The altitude of the use site is in accordance with GB755-2000.
Outdoor rain and snow erosion or corrosive gases and media should be used anti-corrosion products.

Product Details

SE, SH, SP series failure protection disc brakes

Working brake, allowing high frequency braking.
Braking force, low maintenance costs, with pad wear automatic compensation device (brake torque stability), noon should be short time.
Installation tolerance, brake disc end beating: the maximum: ± 0.2mm. Comparison of the verticality of the base relative to the disc: max: ± 4 ‰.
The center distance of the brake disc relative to the base: Maximum: ± 2.5 mm.
The series includes the following types of brakes:
561SE, 560SE, 56SE, 5SE, 450SE, 4SE, 3SE Brakes (Electromagnetic Release). Work must have ESE / ESP matching power supply (see the specific parameters of matching power supply).
5SH, 450SH, 4SH, 3SH, 904SH brake (hydraulic release). Work need to have hydraulic station.
5SP, 450SP, 4SP, 3SP Brake (Pneumatic Release) (5bar)

Safety brakes
The braking force is the same as the working brake.
Found in the case of speeding, for emergency braking, under normal circumstances the static brake should be short time.
Installation tolerance, brake disc end beating: the maximum: ± 0.2mm. The deviation of the base relative to the disc: ± 0 .4 ‰.

The series includes the following types of brakes:
All SE series. Electromagnetic release. Work must have matching power supply ESE / ESP (see the specific parameters of matching power supply).
All SH series is mainly ST series. Hydraulic release. Work with hydraulic station.
All SP series. Pneumatic release (5bar)
Note: ST1SE, ST2SE are only suitable for use as safety brakes. It can also be used as a working brake when the frequency is low.

Depending on the user's needs, the following devices can be installed:
The pad wear is shown (by means of a switch or pad).
Brake display (via display switch).
Manual release (through display switch)
Special applications: Sintering gaskets for very high plate temperatures, special liners (no horses, etc.); special discs (thickness, diameter, material, etc.).
Spring brake - hydraulic barrier - suitable for plate thickness: 30mm

ST3SH-A basic parameters

Braking torque (Nm) = Braking force / 1000 x [(ΦB) / 2-68] Inlet: M18x1.5

ΦB-unit: mm

Braking force	N.	220 000
release stress	Bar	110-120
Fully released displacement capacity	Cm3	180
Total cylinder volume	Cm3	310
Response time	S	0.2
weight	Kg	118
A	Mm	= (0.171 x ΦB) +240
C	Mm	= (0.47 x ΦB) -120

ST16SH: Connector: 8 bolts M 24 grade 12.9 Tightening torque 1000NM;
ST16SH: Connector: 8 bolts M 30 Level 12.9 Tightening torque 1350NM;
ST25SH: Connector: 8 bolts M 30 Class 12.9 Tightening torque 1500NM ;
ST40SH: Connector: 8 bolts M 39 Level 12.9 Tightening torque 5000NM;

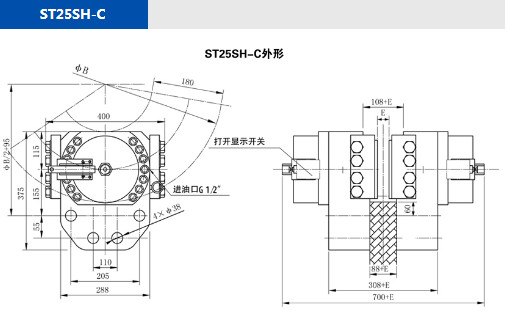

ST10SH, ST16SH, ST25SH, ST40SH basic parameters and size table

Unit (mm)

Brake type		ST10SH	ST16SH	ST25SH	ST40SH
Basic parameters	Braking torque formula: Nm	Braking torque = Braking force / 1000x (ΦB / 2-75) Braking torque = Braking force / 1000x (ΦB / 2-90) Braking torque = Braking force / 1000 x (Φ B / 2-90) Braking torque = Braking force / 1000 x (B / 2-100)
	Rated braking force	81000	150000	200000	288000
	Inlet size	The inlet port is: M18x1.5
	Clearance mm	2	1		2
	Working pressure MPa	13	15		19
	Cylinder volume mL	275	360	560	810
	Response time S	0.2
	Completely release displacement capacity mL	32	twenty one	88	31
	Weight Kg		218	286
Dimensions	A	45	65	72	100
	C	45	70	90	100
	D	190	260	302	367
	F	25	32	32	41
	G	55	65	65	100
	H	130	135	150	219
	I	95	110	130	168
	J	300	345	380	522
	K	45	45	60	119
	L	315	370	400	462
	M	190	205	220	268
	N.	88	88	88	90
	O	35	35	50	100
	P	48	48	48	50
	Q	288	288	288	306
	R	648	600	650	630

ST4SH: Connector 4 screws M33: Level 10-9; Tightening torque: 685N.m;
2 screws M24: Grade 10-9; Tightening torque: 255N.m;
ST5SH: Connection 6 screws M33: Grade 10-9; Tightening torque: 1600N.m

ST4SH, ST5SH basic parameters and size table

Unit (mm)

Group  this  parameter  number	Braking torque formula Nm	Braking torque = Braking force / 1000 x (Φ> B / 2-108)
	Unilateral withdrawal mm	1
	Release pressure bar	ST4SH: 100 ST5SH: 190
	Inlet size "	ST4SH: Z1 / 4 ST5SH: Z1 / 2
	Rated braking force	ST4SH: 120000 (safety brake) / 90000 (working brake)
		ST2SE: 70000 (safety brake) / 220000 (working brake)
	Response time S	0.2
Dimensions mm	Completely release displacement capacity cm3	ST4SH: 110 ST5SH: 120
	Total cylinder volume cm3	ST4SH: 408 ST5SH: 678
	Weight Kg	ST4SH: 285 ST5SH: 440
	A	80
	C	100
	D	125
	F	336
	G	ST4SH: 200 ST5SH: 204
	H	ST4SH: 355 ST5SH: 420
	1	140
	J	155
	K	173
	L	460
	M	190
	N.	410
	〇	ST4SH: 617 ST5SH: 970
	P	40
	Q	34
	R	25
	S	ST4SH: 4 ST5SH: 6
	T	ST4SH: 2 ST5SH: 0

5SH, 450SH, 4SH, 3SE basic parameters and size table:

904SH basic parameters table

Connection: 1 screw M12-30 + 2 M12: Grade 10-9 Tightening torque: 50N.m
Braking torque (N. m) = Braking force / 1000 x [(ΦB) / 2-30]
ΦB- Unit: mm

The maximum braking force for emergency braking	N.	20 000 (pad A) 904-A
The maximum braking force for the brake	N.	15 000 (liner M) 904-M
release stress	Bar	60
Fully released displacement capacity	Cm³	33
Total cylinder volume	Cm³	98
Response time	S	0.3
weight	Kg	28
