Disc brakes

Position：Home > Crane > Brake > Hongfa brake > Disc brakes >

Jiaozuo Hongfa SE series of electromagnetic failure protecti

Jiaozuo Hongfa SE series of electromagnetic failure protection brakes

SE series of electromagnetic failure protection brakes

Overview: SE, SH, SP series failure protection disc brakes and drum brakes compared with the structure is compact, large braking force, easy installation, it is mainly used for lifting, transportation, metallurgy, mining, ports, construction machinery, Cables, sling equipment, wind turbines, textile machinery and other industries supporting a variety of mechanical drive mechanical brake or slow down.
Conditions of use: Ambient temperature: -20 ℃ -50 ℃. There should be no flammable, explosive gas in the surrounding working environment. Air relative humidity of not more than 90%. The altitude of the use site is in accordance with GB755-2000. Outdoor rain and snow erosion or corrosive gases and media should be used anti-corrosion products.
Main features: pneumatic brake, spring release. The overall structure is simple, small size, light weight. No asbestos brake pads, green. Brake pad installation, easy to replace. Brake pads are easy to adjust after wear. Brake block automatically with the device to ensure that the brake block in the machine opening and closing operation with the host brake disc up and down the gap equal. All power sources need not be set separately, can be used with the existing air compressor station, in the gas supply line installed speed valve, brake time can be stepless adjustment.

SE, SH, SP series failure protection disc brakes
Working brake, allowing high frequency braking.
Braking force, low maintenance costs, with pad wear automatic compensation device (brake torque stability), noon should be short time.
Installation tolerance, brake disc end beating: the maximum: ± 0.2mm. Comparison of the verticality of the base relative to the disc: max: ± 4 ‰.
The center distance of the brake disc relative to the base: Maximum: ± 2.5 mm.
The series includes the following types of brakes:
561SE, 560SE, 56SE, 5SE, 450SE, 4SE, 3SE Brakes (Electromagnetic Release). Work must have ESE / ESP matching power supply (see the specific parameters of matching power supply).
5SH, 450SH, 4SH, 3SH, 904SH brake (hydraulic release). Work need to have hydraulic station.
5SP, 450SP, 4SP, 3SP Brake (Pneumatic Release) (5bar)

Safety brakes.
The braking force is the same as the working brake.
Found in the case of speeding, for emergency braking, under normal circumstances the static brake should be short time.
Installation tolerance, brake disc end beating: the maximum: ± 0.2mm. The deviation of the base relative to the disc: ± 0 .4 ‰.
The series includes the following types of brakes:
all SE series. Electromagnetic release. Work must have matching power supply ESE / ESP (see the specific parameters of matching power supply).
All SH series is mainly ST series. Hydraulic release. Work with hydraulic station.
All SP series. Pneumatic release (5bar)
Note: ST1SE, ST2SE are only suitable for use as safety brakes. It can also be used as a working brake when the frequency is low.

Depending on the user's needs, the following devices can be installed:

The pad wear is shown (by means of a switch or pad). Brake display (via display switch). Manual use (for display); special applications; sintering linings for very high plate temperatures, special linings (no horses, etc.); special discs (thickness, diameter, material, etc.). If you have any questions, please contact our technical staff.

ST1SE, ST2SE basic parameters and size

ΦB-unit: mm

base this Senate number	Braking force moment formula	Braking torque = Braking force / 1000 X (ΦB / 2-68)
	Both sides away from the mm	0.7
	Rated braking force	ST1SE: 35000 (safety brake) / 25000 (working brake)
	Rated braking force	ST2SE: 70000 (safety brake) / 50000 (working brake)
	Power consumption	Start power ST1SE: 1760 ST2SE: 2830
	Power consumption	Maintain power ST1SE: 60 ST2SE: 160
	Corresponding time S	ST1SE: 0.15 ST2SE: 0.2
	Weight Kg	ST1SE: 155 ST2SE: 194
outer shape ruler Inch Mm	A	ST1SE: A = 0.179 x ΦB + 263
	A	ST2SE: A = 0.171 x ΦB + 279
	C	ST1SE: C = 0.466 x ΦB-155
	C	ST2SE: C = 0.470 x ΦB-161
	D	24.5
	E	285
	F	340
	G	ST1SE: 275
	G	ST2SE: 281
	H	ST1SE: 460
	H	ST2SE: 477
	I	90
	J	230
	K	167
	L	210
	N.	4
	〇	M30
	P	27.5
	Q	ST1SE: 21 °
	Q	ST2SE: 20 °

Note: 1, the brake must be equipped with special power, see the specific matching power supply. 2, the brake is only suitable for safety brakes, not suitable for working brakes.

5SE, 450SE, 4SE, 3SE basic parameters and size

Basic parameters					Dimension mm																Power consumption w		Response time S	Both sides away from the mm	Weight kg
Dish umbrella B mm	Rated braking force	Rated braking force N		The shaft is subjected to the maximum radial force N	A	C	D	E	F	G	H	I	J	K	L	0	P	Q	R	T	start power	maintain power	Response time S	Both sides away from the mm	Weight kg
315	561SE 640 560SE 1220 56SE 1600	5SE	190	5SE -station 1B5U Two 740 450SE 3340 Two 1500 4SE -station 5580 Two 3440 3SE -station 10170 Two 6965	159	99	5SE 15 450SE 15 4SE 20 3SE 25	5SE 200 450SE 200 4SE 260 3SE 360	5SE 245 450SE 245 4SE 355 3SE 490	5SE 155 450SE 155 4SE 85 3SE 80	5SE 280 450SE 280 4SE 343 3SE 435	5SE 87.5 450SE 87.5 4SE 117.5 3SE 117.5	5SE 200 450SE 200 4SE 270 3SE 270	5SE 15 450SE 15 4SE 22 3SE 22	5SE 15 450SE 15 4SE 20 3SE 20	5SE 13 ° 450SE 13 ° 4SE 17. 3SE 20 °	5SE 90 450SE 90 4SE 122 3SE 128	5SE 42 450SE 42 4SE 57 3SE 68	5SE 120 450SE 120 4SE 165 3SE 165	5SE 175 450SE 175 4SE 210 3SE 210	5SE 475 450SE 1000 4SE 1000 3SE 1095	5SE 0.15 450SE 44 4SE 42 3SE 58	5SE 0.15 450SE 0.15 4SE 0.2 3SE 0.2	0.7	5SE 34 450SE 34 4SE 77 3SE 120
315		450SE	380		159	99
355		5SE	220		165	119
355		450SE	450		169	199
400		5SE	260		172	142
400		450SE	510		172	142
450		5SE	300		179	167
		450SE	600		179	167
		4SE	900		225	133
		3SE	1600		287	103
500		5SE	340		187	192
		450SE	680		187	192
		4SE	1120		232	157
		3SE	1820		295	127
560		5SE	390		195	223
		450SE	770		195	223
		4SE	1270		241	185
		3SE	2100		305	155
630		5SE	460		206	258
		450SE	900		206	258
		4SE	1500		251	218
		3SE	2500		317	188
710		450SE	1030		218	298
		4SE	1750		262	256
		3SE	2900		331	226
800		450SE	1180		231	344
		4SE	2000		274	299
		3SE	3350		346	269

Note: 1, the brake must be equipped with special power, see the specific matching power supply. Note: Guangzhou goods are updated, please note the latest version of anthracene.

561SE, 560SE, 56SE basic parameters and size

Basic parameters				Dimension mm																Power consumption w		Response time S	Both sides away from the mm	Weight kg
Traverse (B mm	Rated braking force	Rated braking force Nm		The shaft is subjected to the maximum radial force N	A	C	D	E	F	G	H	I	K	L	N.	〇	P	Q	S	Starting power	Maintain power
175	561SE 640 560SE 1220 56SE 1600	561SE	40	561 SE - Taiwan 640 two 0 560SE - Taiwan 1220 two 0 56SE - Taiwan 1600 two 0	85	118	20	75	92	135	30	85	333	12	83	73.5	95	15	50	561SE 255 560SE 310 56SE 895	561SE 7 560SE 8 56SE 33	0.15	0.7	20
		560SE	80
		56SE	110
220		561SE	50			118
		560SE	90
		56SE	130
250		561 SE	60			130
		560SE	120
		56SE	150
315		561 SE	80			145
		560SE	150
		56SE	190
355		561 SE	90			178
		560SE	170
		56SE	220
400		561 SE	100			198
		560SE	200
		56SE	260
450		561 SE	120			220
		560SE	230
		56SE	300
500		561 SE	140			245
		560SE	265
		56SE	350
560		561 SE	150			270
		560SE	280
		56SE	390
630		561 SE	180			300
		560SE	340
		56SE	440

Note: 1, the brake must be equipped with special power, see the specific matching power supply. Note: The product is updated, please note the latest version.

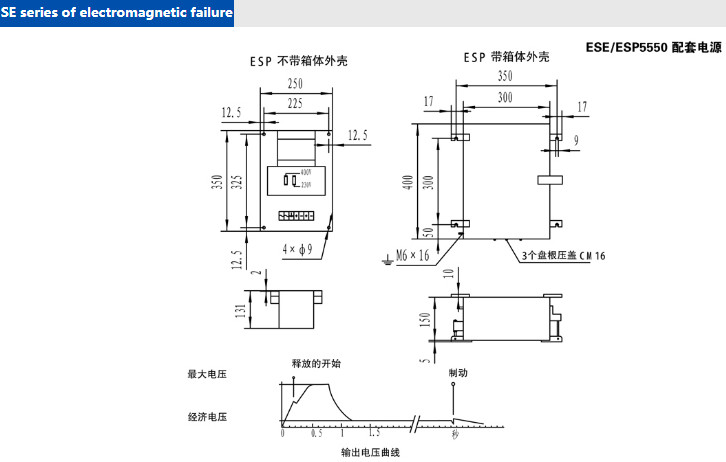

voltage	230 / 400V.50-60 Hz -20 ℃ <T ℃ <60 ℃
Release voltage	65V internal resistance R = 0.94 0hm
Economic voltage	10V internal resistance R = 0.2 Ohm
The maximum resistance of the wiring cable	Each brake 0.5 Ohm
Protection level	ESP 5550: IP 00 ESE 5550: IP 69
weight	ESP 5550: 8kg ESE 5550: 16kg

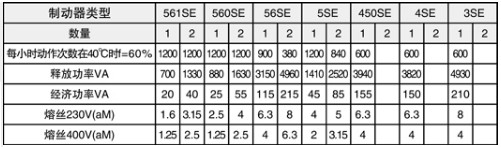

	ESE / ESP 51000											ESE / ESP 51200
Brake type	56SE				5SE		450SE		4SE		3SE		ST1SE		ST2SE
Quantity	1	2	3	4	1	2	1	2	1	2	1	2	1	2	1	2
Hourly action at 4O ℃ = 60%	1200	915	650	515	1200	1200	1200	695	1200	725	925	520	1030	570	340
Release power VA	3350	5990	8110	9860	2580	3700	4430	7650	4260	7390	5930	9790	5380	9025	13410
Economic power VA	120	230	330	420	90	130	160	300	115	290	225	415	200	375	650
Fuse 230V (aM)	8	14	16	16	6.3	10	12.5	16	10	16	14	16	12.5	16	20
Fuse 400V (aM)	5	8	10	10	4	5	6.3	8	6.3	B	8	10	8	10	10
