We, DKM Co.,Ltd. is a manufacturer of small geared motor, step motor and servo gearbox exported to China, Southern Asia and Europe and so on.

015.01 ‘TUV certificate’ (Europe UL1004-1)
07 Acquired ‘UL mark’
2014.06 Newly launched ‘400W small geared motor’ (patent)
10 Acquire ‘CE Mark’
2011.01 Unveiled a new corporate identity
2010.11 Relocation and extension of global headquarters
2009.09 Established ‘DKM Europe’ in Germany
2008.08 Established ‘DKM South Asia Pte Ltd.’ in Singapore
2005.10 Established ‘DKM Shanghai Co., Ltd.’ and factory in Shaghai, China
2004.04 Acquired 'CCC' certificate
2002.02 Acquired ISO 9001:2000
2000.07 Changed company name to DKM Co., Ltd., the holding company
09 Certified as ‘Venture Company’ by Korean government
1999.07 Acquired CE (in some parts of Induction Motor)
08 Advanced into Europe
1997.05 Development of small precision Worm Type Geared Motor
1996.05 Small precision ‘Clutch Brake Type Geared Motor’ was selected as strategic trade product by Korean government
1995.01 Starts export to India, Indonesia and Malaysia
09 Selected as New Tech ’95 by Production Technology Research Institute
11 Selected as contributor of development of excellent product by Korean government
1994.04 Acquired ‘NT-New Technology Mark’ from Korean government
1993.12 Acquired ‘Q Mark’ in Small Gearhead division from Korean government
1990.01 Starts export to overseas markets including China
1989.11 Certification acquired of company foundation by Korean government
1988.07 DKM founded as the name of ‘Daekyung Electric Co.’, the previous name
11 M&A by combining Sungeun Electronics Co.
1987.08 Developed ‘Small Geared Motor’ first time in Korea
1983.12 The father company, ‘Daekyung Machinery Co.’ founded (in Guro-gu, Seoul)

Motor with constant speed
Induction Motor


Induction Motor
- Constant speed with continuous operation
- Stop in 2 sec. when switched off
- Overrunn: 30-40 times
- Possible for reverse rotation
Reversible Motor


Reversible Motor
- Suitable for frequent reverse operation
- Stop in 0.5 sec. when switched off
- Overrun: 5-6 times
- Possible for reverse rotation
Brake Motor


- Suitable for operation where load should be maintained
- Stop in 0.2 sec. when switched off
- Overrun: 2-3 times
- Possible for reverse rotation
Clutch & Brake Motor


- Suitable for high frequent start and stop operation
- Stop in 0.1 sec. when switched off
- Overrun: 1 time
- Possible for reverse rotation

2 Pole Motor


- High speed rotation
- 3,600 RPM (60Hz)
- 3,000 RPM (50Hz)
- Used without gearhead
- Possible for reverse rotation

Torque Motor
Torque Motor


- Suitable for controlling tension and pushing in winding operations
- Possible for reverse rotation
Torque Controller TDS


- Control Torque
Torque Controller DX3000


- Controller for Torque Control
- External digital I/O control
- Easy connection of DIN Rail
- Eesy connection to terminal block
- Standard modbus communication control
Torque Controller FX3000


Torque Controller FX3000
- Digital speed display
- Speed, Torque control
- Simple dial
- Possible to set gear ratio
- Possible to set acceleration time

Motor with speed controlling function
Speed Control Induction Motor


- Speed control by using controller
- Stop in 2 sec. when switched off
- Overrun: 30~40 times
- Possible for reverse rotation
Speed Control Reversible Motor


Speed Control Reversible Motor
- Suitable for frequent reverse operation
- Stop in 0.5 sec. when switched off
- Overrun: 5~6 times
- Possible for reverse rotation
Speed Control Brake Motor


Speed Control Brake Motor
- Suitable for operation where load should be maintained
- Stop in 0.2 sec. when switched off
- Overrun: 2~3 times
- Possible for reverse rotation
Speed Control Clutch & Brake Motor


Speed Control Clutch & Brake Motor
- Suitable for high frequent start and stop operation
- Stop in 0.1 sec. when switched off
- Overrun: 1 time
- Possible for reverse rotation

Speed Controller FX3000


Speed Controller FX3000
- Speed and Torque control
- Simple Dial
- possible to set gear ratio
- possible to set acceleration time
Speed Controller FX1000A


Speed Controller FX1000
- Front panel potentiometer
- Unit type
(Connecting motor with easy-to-use connector)

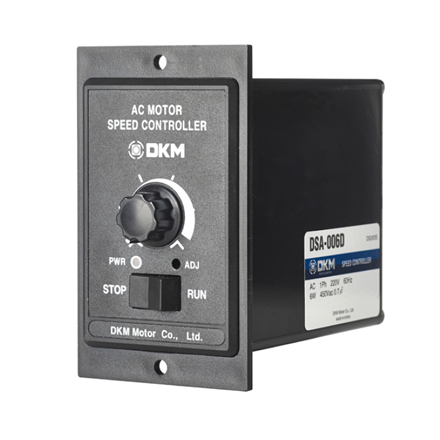

Speed Controller DSA


Speed Controller DSK
- Front panel potentiometer
- Socket type
(Connecting motor with socket)
Speed Controller DSKM


Speed Controller DSKM
- Integrated volume
(Possible to attach external volume)
- Socket type
(Connecting motor with socket)

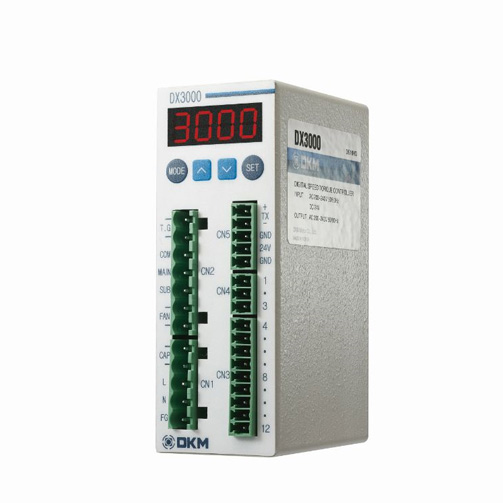

Speed Controller DX3000


- Controller for Speed Control
- External digital I/O control
- Easy connection of DIN Rail
- Eesy connection to terminal block
- Standard modbus communication control\

DC Small Geared Motor




DC Small Geared Motor
DC Motor
Compact Structure
Low Voltage, High Output
Superiority in the responsiveness of operation and stop
Applicable to place that requires low noise and low vibration
Download

15W □60mm|25W □80mm|40W □80mm|60W □90mm|90W □90mm|120W □90mm|200W □90mm|
Speed Controller
Speed Controller DSD-90


- Front panel potentiometer
- Unit type
- Applicable to DC 90V Motor
Gearhead
Gerneral type Gearbox


- General Box Type(G Type)
- Frame Size: 60/70/80/90mm
-Gear ratio 2:1~360:1
Powerful type Gearbox


- Powerful Box Type(PB Type)
- Powerful Flange Type(PF TYPE)
- Frame Size: 90mm
- 90mm gear ratio 2:1∼200:1
High Powerful type Gearbox


- High Powerful Box Type(HB Type)
- High Powerful Flange Type(HF Type))
- Frame Size: 90mm
- 90mm gear ratio 3:1∼200:1

Worm Gearhead


- Worm Solid Type(WD Type)
- Frame Size: 80/90mm
- 80mm gear ratio 10:1∼60:1
- 90mm gear ratio 10:1∼60:1
Inter-decimal Gearhead


- In case of requiring high gear ratio that cannot be generated by single gearbox
- Frame Size: 80/90mm
- 80mm gear ratio 10:1
(8XD10GG/GW)
- 90mm gear ratio 10:1
(9XD10GG/GW/GP/GH/GZ)-40W
(9XD10PP/PW/PH/PZ)-60W∼120W
