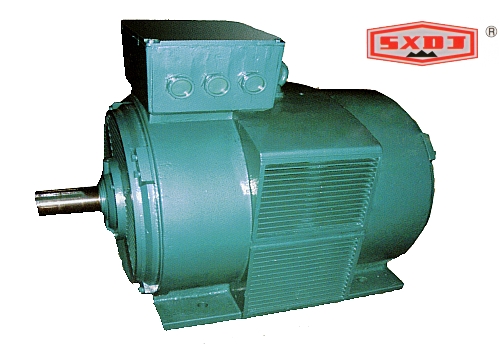

SXDJ motor YTS(IP23)

YTS series (IP23) hoist special frequency conversion
three-phase asynchronous motor (frame size 280 ~ 400)

YTS series (IP23) motor is based on the actual operating conditions of the hoist class load, and specially developed the special frequency converter three-phase asynchronous motor. This series of motors from the inverter power supply, in the range of 3 ~ 50Hz constant torque speed, with a large starting torque, overload capacity, smooth speed, reliable operation, low noise, especially for low-frequency start, rated frequency Under the operation of the machinery and equipment supporting the hoist machinery and equipment to achieve stepless speed regulation, intelligent control of the ideal product.
Motor protection class IP23, cooling mode IC01. That is, the motor is an open, self-circulating ventilation cooling system. Has a good ventilation and cooling capacity. Completely eliminate the general frequency control motor dependent on the additional axial fan forced ventilation cooling caused by ventilation and noise, axial fan failure after the motor can not be normal use and other defects.
The motor is S1 continuous operation and can also be used for S3 intermittent cycle (eg S3-40% or S3-60%). Insulation class 155 (F) level, the use of variable frequency motor winding dedicated wire and high strength withstand voltage insulation structure, in the rated state (rated voltage, rated frequency, rated power, nominal power and S1 operating system), the winding temperature rise Generally not more than 65K, with high operational reliability.
The rated voltage of the motor is 380V, the rated frequency is 50Hz, and the voltage and frequency of the rated point can be determined according to the requirements of different speed range and power supply (such as: 400V, 415V, 420V, 440V, 660V, 690V; 25Hz, 30Hz , 60Hz, etc.). But in addition to the rated voltage of 380V, rated frequency of 50Hz other than the need to advance in order to carry out technical communication.
The motor's power rating and mounting dimensions comply with IEC International standards. YTS, YP, YV, YVP, YTSP and other series of frequency control motor, in order to obtain excellent frequency control performance using YTS series (IP23) motor to bring greater convenience, and more general than the general Type inverter motor with higher energy efficiency and safety and reliability. YTS series (IP23) motor can be easily derived from the biaxial extension or additional speeding switches, rotary encoders and other automatic control device for the lifting machine machinery and equipment to create a favorable technological progress conditions.

Model
Description : For example: Y TS 315 M1-8
Y: Asynchronous motor

TS: special speed control for hoisting machine

315: base height (mm)

M1: the first core length in the base

8: number of poles

Rated voltage    380V              Rated   frequency 50Hz
Power range    55 ~ 630 KW Protection        class    IP23
Insulation class    F-class              Cooling method    IC01
Working mode    S1 or S3          Poles   4,6,8,10,12
