NGP Crane motor YZP


Overview

YZP crane and metallurgical VVVF three-phase asynchronous motor(hereinafter referred to as the motor) is a crane and metallurgical phase asynchronous motor advantages and characteristics of the frequency control in one set, it has a large overload capacity, high mechanical strength , The speed range is wide, stable operation characteristics, the basic technical conditions in line with IEC34-1 international standards and GB755 national standards, the performance of the motor with the level of foreign 90 years quite. Can be used in various types of lifting and metallurgical machinery or other similar equipment, and often start, brake, reverse the occasion.
1. The motor can be used normally under the following conditions.
1.1 ambient temperature does not exceed 40 ℃ (general environment), 60 ℃ (metallurgical environment).
1.2 relative temperature ≤ 90%.
1.3 Altitude not exceeding 1000m.
1.4 frequent start, brake (electrical or mechanical) and reverse.
2. Rated motor voltage 380V, rated frequency of 50Hz, can be in the range of 3-100Hz continuous speed, can also be based on user requirements, to determine the rated voltage, rated frequency, and 3Hz below the FM requirements.
3. Motor reference working system is S3-40%.
4. Model description






structure
1. Degree of protection
Motor protection class IP44, can also be made according to user requirements IP54, cooling fan protection class IP23.
2. Cooling method
Motor cooling method for the whole closed axial fan cooling (IC416), can also be made according to user requirements other cooling methods.
3. Motor structure and installation type see table

Structure and installation type
Code
Manufacturing range (frame number)
IM1001

112-160
IM1003
180-400
IM3001
100-160
IM3003
180-225
IM3011
100-160
IM3013
180-315
4. Insulation class
Motor insulation class for the F level (general environment), H level (metallurgical environment).
5. Junction box
The motor stator terminal box can be located at the top of the stand according to the user's request, or on the right or left side of the base.



Installation and external dimensions

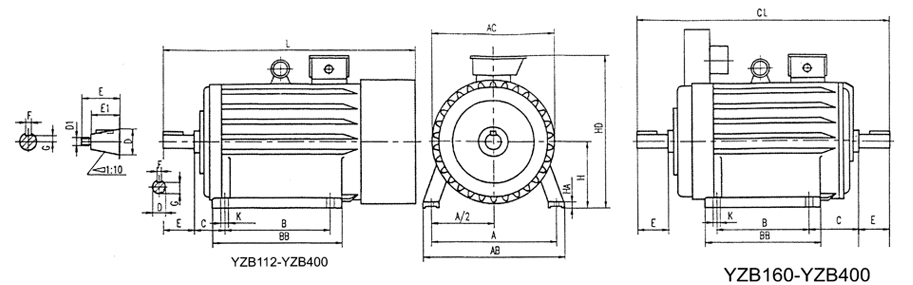

IM1001, IM1003 and IM1002, IM1004 Horizontal mounting base with foot cap No flange motor YZP112, YZP400
Frame number Installation dimensions and tolerances Dimensions
A A / 2 B C D D1 E E1 F G H K Bolt diameter AB AC BB HA HD L CL
basic size limit deviation basic size limit deviation basic size limit deviation basic size basic size limit deviation basic size limit deviation basic size limit deviation basic size limit deviation
112M 190 95 140 70 ± 2.0 32 　 - 80 ± 0.37 - 10 0 27 　　 112 　　 12 　　 M10 250 245 235 15 330 590 　
132M 216 108 178 89 38 +0.018 -0.036 33 132 275 285 260 17 360 645 　
160M 254 127 210 108 ± 3.0 48 +0.002 110 ± 0.43 14 　　 42.5 　　 160 0 15 +0.43 M12 320 325 290 20 420 758 718
160L 254 　 -0.5 0 335 800 762
180L 279 139.5 279 121 55 - M36 × 3 82 0 19.9 　 180 　 　 360 360 380 twenty two 460 870 800
200L 318 159 305 133 60 M42 × 3 140 ± 0.50 105 16 -0.043 21.4 0 200 　　　 19 　　　 M16 405 405 400 25 510 975 928
225M 356 178 311 149 ± 4.0 65 　　 23.9 -0.2 225 455 430 410 28 545 1050 998
250M 406 203 349 168 70 M48 × 3 18 25.4 　 250 twenty four M20 515 480 510 30 605 1195 1092
280S 457 228.5 368 190 85 - M56 × 4 170 130 20 　　 31.7 　　　　 280 　　 +0.52 575 535 530 32 665 1265 　
280M 419 0 580 1315 　
315S 508 254 406 216 95 M64 × 4 twenty two 0 35.2 315 0 28 　　　　 M24 640 620 35 750 1390 　
315M 457 -0.052 -1.0 630 1440 　
355M 610 305 560 254 110 M80 × 4 210 ± 0.58 165 25 　　 41.9 　　　 355 　　　 740 710 730 38 840 1650 　
355L 630 800 1720 　
400L 686 343 710 280 130 - M100 × 4 250 200 28 　 50 400 35 +0.62 M30 855 840 910 45 950 1865 　
0

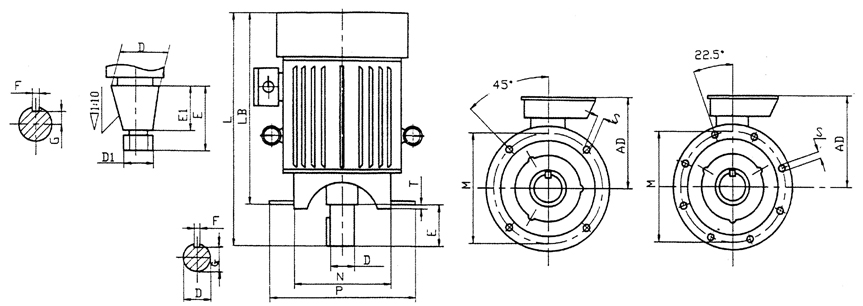

IM3001, IM3003 Horizontal mounting base with bottom cover No flange motor YZP112, YZP225
Frame number Installation dimensions and tolerances Dimensions
Concave code D D1 E E1 F G M N P R S Bolt diameter T max Number of holes AD L LA LB
basic size limit deviation basic size limit deviation basic size basic size limit deviation basic size limit deviation basic size limit deviation basic size limit deviation basic size limit deviation
112M FF215 32 +0.018
-0.002		 - 80 ± 0.37 - 10 　 27 0
-0.2		 215 180 +0.014 250 0 ± 2 15 +0.43
0		 M12 4 4 220 590 14 510
0 -0.011
132M FF265 38 -0.036 33 265 230 　 300 230 640 560
160M FF300 48 110 ± 0.43 14 　 42.5 300 250 +0.016 350 ± 3 19 +0.52
0		 M16 5 250 820 18 710
160L 　 -0.013 870 760
180L 55 - M36 × 3 82 0 19.9 　 280 910 800
200L FF400 60 M42 × 3 140 ± 0.50 105 16 -0.043 21.4 400 350 ± 0.018 450 8 320 1050 20 910
225M 65 　 23.9 ± 4 1110 970


IM1001, IM1003 and IM1002, IM1004 Horizontal mounting base with chassis foot cover No flange motor YZP112, YZP315
Frame number
Installation dimensions and tolerances
Dimensions
Concave code
D
D1
E
E1
F
G
M
N
P
R
S
Bolt diameter
T max
Number of holes
AD
L
LA
LB
basic size
limit deviation
basic size
limit deviation
basic size
basic size
limit deviation
basic size
limit deviation
basic size
limit deviation
basic size
limit deviation
basic size
limit deviation
112M
FF251
32
+0.018
-0.002
-
80
± 0.37
-
10
0
-0.036
27
0
-0.2
215
180
+0.014
-0.011
250
0
± 2
15
+0.043
0
M12
4
4
220
590
14
510
132M
FF265
38
33
265
230
+0.016
-0.013
300
230
640
560
160M
FF300
48
110
± 0.43
14
0
-0.043
42.5
300
250
350
± 3
19
+0.52
0
M16
5
250
820
18
710
160L
870
760
180L
55
-
M36 × 3
82
19.9
280
910
800
200L
FF400
60
M42 × 3
140
± 0.50
105
16
21.4
400
350
± 0.018
450
8
320
1050
20
910
225M
65
23.9
± 4
1110
970
250M
FF500
70
M48 × 3
18
25.4
500
450
± 0.020
550
385
1280
twenty two
1140
280S
85
-
M56 × 4
170
130
20
0
-0.052
31.7
435
1380
1210
280M
1430
1260
315S
FF600
95
M64 × 4
twenty two
35.2
600
660
± 0.022
660
twenty four
M20
6
520
1490
25
1320
315M
1540
1370


Technical data
  Table 1

model
Nominal power (KW)
Rated current (A)
Rated torque (NM)
Rated speed (r / min)
Stall torque
Maximum torque
Moment of inertia (Kg.m2)
Output characteristics
Axial Fan
Weight (Kg)
Rated torque (times)
Rated torque (times)
Voltage (v)
Power (W)
YZP112M1-6
1.5
4.0
14.3
930
1.25-1.8
2.4
0.019
　
380
90
60
YZP112M2-6
2.2
5.8
21.0
930
1.25-1.8
2.4
0.028
380
90
71
YZP132M1-6
3.0
7.8
28.7
960
1.25-1.8
2.4
0.052
380
100
82
YZP132M2-6
4.0
9.6
38.2
960
1.25-1.8
2.4
0.063
380
100
93
YZP160M1-6
5.5
12.9
52.5
970
1.25-1.8
2.4
0.10
380
100
120
YZP160M2-6
7.5
17.6
71.6
970
1.25-1.8
2.6
0.13
380
100
133
YZP160L-6
11
24.9
105.1
970
1.25-1.8
2.8
0.17
380
100
154
YZP180L-6
15
33.1
143.3
975
1.25-1.8
2.8
0.31
380
230
208
YZP200L-6
twenty two
46.8
210.1
980
1.25-1.8
2.8
0.56
380
230
281
YZP225M-6
30
66.3
286.5
982
1.25-1.8
2.8
0.74
380
300
352
YZP250M1-6
37
72.6
353.4
982
1.25-1.8
2.8
1.28
380
300
472
YZP250M2-6
45
89.3
429.8
982
1.25-1.8
2.8
1.53
380
300
515
YZP280S1-6
55
105.5
525.3
985
1.25-1.8
2.8
1.94
380
370
705
YZP280S2-6
63
120.8
601.7
985
1.25-1.8
2.8
2.19
380
370
740
YZP280M-6
75
143.9
716.3
985
1.25-1.8
2.8
2.42
380
370
780
YZP315S1-6
90
174.9
859.5
985
1.25-1.8
2.8
5.78
380
450
1035
YZP315M-6
110
213.7
1050.5
985
1.25-1.8
2.8
7.22
380
450
1180
YZP355M-6
132
245.7
1260.6
980
1.25-1.8
2.8
9.7
380
550
1380
YZP355L1-6
160
287.3
1528
980
1.25-1.8
2.8
11.6
380
550
1550
YZP355L2-6
200
363.2
1910
980
1.25-1.8
2.8
14.3
380
550
1710
YZP400L1-6
250
470.4
2387.5
980
1.25-1.8
2.8
20.1
380
630
2210
YZP400L2-6
300
564.5
2865
980
1.25-1.8
2.8
23.1
380
630
2690
Note: 1. Stall torque / rated torque of 3Hz when the value 2. Maximum torque / rated torque of 50Hz when the value
Table 2
model
Nominal power (KW)
Rated current (A)
Rated torque (NM)
Rated speed (r / min)
Stall torque
Maximum torque
Moment of inertia (Kg.m2)
Output characteristics
Axial Fan
Weight (Kg)
Rated torque (times)
Rated torque (times)
Voltage (V)
Power (W)
YZP160L-8
7.5
18.1
95.5
730
1.25-1.8
2.6
0.17
　
380
100
154
YZP180L-8
11
25.8
140.1
735
1.25-1.8
2.8
0.31
380
230
208
YZP200L-8
15
34.7
191.0
735
1.25-1.8
2.8
0.56
380
230
281
YZP225M-8
twenty two
49.7
280.1
735
1.25-1.8
2.8
0.74
380
300
352
YZP250M1-8
30
67
382.0
735
1.25-1.8
2.8
1.28
380
300
472
YZP250M2-8
37
82.6
471.1
735
1.25-1.8
2.8
1.53
380
300
515
YZP280S1-8
45
100.8
573.0
735
1.25-1.8
2.8
1.94
380
370
705
YZP280M-8
55
121.7
700.3
735
1.25-1.8
2.8
2.42
380
370
780
YZP315S1-8
63
128.1
802.2
735
1.25-1.8
2.8
5.78
380
450
1035
YZP315S2-8
75
152.5
955.0
735
1.25-1.8
2.8
6.51
380
450
1105
YZP315M-8
90
176.7
1146.0
735
1.25-1.8
2.8
7.22
380
450
1180
YZP355M-8
110
213.4
1400.7
745
1.25-1.8
2.8
9.7
380
550
1380
YZP355L1-8
132
256.1
1680.8
745
1.25-1.8
2.8
11.6
380
550
1550
YZP355L2-8
160
310.5
2037.3
745
1.25-1.8
2.8
14.3
380
550
1710
YZP400L1-8
200
417.4
2546.7
745
1.25-1.8
2.8
20.1
380
630
2210
YZP400L2-8
250
516.1
3183.3
745
1.25-1.8
2.8
23.1
380
630
2690
Note: 1. Stall torque / rated torque of 3Hz when the value 2. Maximum torque / rated torque of 50Hz when the value
table 3
model
Nominal power (KW)
Rated current (A)
Rated torque (NM)
Rated speed (r / min)
Stall torque
Maximum torque
Moment of inertia (Kg.m2)
Output characteristics
Axial Fan
Weight (Kg)
Rated torque (times)
Rated torque (times)
Voltage (V)
Power (W)
YZP280S-10
37
93
594
585
1.25
3.0
3.88
 　
380
370
750
YZP280M-10
45
112
723
585
1.25
3.0
4.12
380
370
800
YZP315S-10
55
124
881
585
1.9
3.3
7.15
380
450
1170
YZP315M-10
75
168
1203
585
1.9
3.2
7.25
380
450
1230
YZP355M-10
90
198
1445
585
2.0
3.2
10.9
380
550
1510
YZP355L1-10
110
230
1769
585
1.82
3.0
13.7
380
550
1630
YZP355L2-10
132
277
2130
585
2.1
2.7
15.8
380
550
1780
YZP400L1-10
160
333
2548
585
2.1
2.7
21.3
380
630
2330
YZP400L2-10
200
418
3185
585
2.1
2.7
24.6
380
630
2790
Note: 1. Stall torque / rated torque of 3Hz when the value 2. Maximum torque / rated torque of 50Hz when the value
