Nang yang Elevator Motor YTDP210 series

Nang yang Elevator Motor YTDP210 series



The motor has a set of working windings, the enclosure protection class IP44, the cooling mode is IC411, the motor is the flange type, the power is below 7.5kW. The motor is suitable for frequency conversion elevator, can be installed in a variety of mechanical slowdown traction machine, with various types of inverter at home and abroad supporting the use of 240 times per hour to meet the frequent use of brake conditions.
Motor performance:
      The motor is suitable for variable frequency speed control elevator, which can be used with all kinds of frequency conversion devices at home and abroad to meet the frequent use of brake conditions 240 times per hour.
      The insulation rating of the motor is Class F.
      The effective value of the vibration velocity measured at no load is not more than 1.12mm / s when the motor is in the case of a half-key extension.
      The A-weighted sound pressure level (Lp) noise measured by the motor at no load does not exceed 70 dB (A).

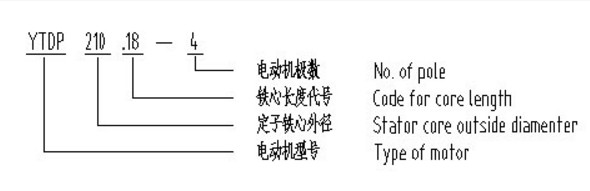

Model Description:
Structure:
      The motor has a set of working windings.
      The motor housing has a protective rating of IP44.
      The cooling mode of the motor is fan-cooled and conforms to IC411.
      The structure and mounting type of the motor are flange mounting type (IM3002).
      The motor uses a rolling bearing.
      In the motor shaft extension, the user can self-mounted hollow shaft rotary encoder.
