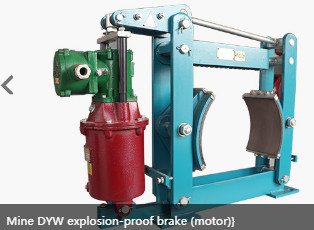

Dianli Mine DYW Explosion-Proof Brake (outside the motor)

Dianli Mine DYW Explosion-Proof Brake (outside the motor)



Mine DYW Explosion-Proof Brake (outside the motor)
product description
Standards compliant:
DYW series of electric hydraulic drum brakes are mainly used in coal mine belt conveyor, installation size and center than the original YWZ5, YWZ9, YW and other specifications of the same power hydraulic drum brakes; technical conditions in line with JB / T6406 and MT912-2002 standards, QB / HN2D-2013;

DYW and BYWZ25 installation size, the implementation of different technical standards, DYW implementation of the national safety standards by the National Center for Safety Monitoring Center to determine the criteria, not only to promote the explosion-proof and security card, brake explosion-proof machine also has a safety mark certificate.

Explosion-proof performance in line with GB3836-2010


Features:
There is an automatic compensation device designed for the use of coal mines. When the brake pads are worn, the length of the rod is automatically adjusted to ensure the safety of the pusher. It is effective to prevent the braking force from being damaged due to the wear of the brake pads. Maintenance - free
There is a brake shoe wings automatically on the middle of the device, brake open gate to avoid the brake pad floating on the surface of the brake wheel, automatic alignment without manual adjustment and maintenance;
There are interlocking and other distance from the device, automatically adjust both sides of the brake shoe and the development of the wheel gap, loose brake to ensure that the brake disc surface and the brake wheel surface safety separation, to avoid unilateral brake film partial grinding phenomenon, with Automatic maintenance - free function;
There are adjustable braking time device, according to the coal mine a variety of working conditions, adjust the brake of different braking time.
