YPZ 2 IV, V, VI Power hydraulic arm disc brakes

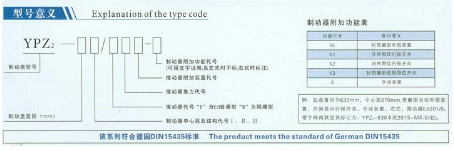

YPZ 2 I, III, III meet the German DIN15435 standard; YP22IV, V, VI meet the German DIN15435 standard and JB / T7020-2006 standard.

main feature:
YPZ2I, III, III back from the equal device, in the course of the process can always keep both sides of the tile away from the equal; YPZ2IV, V, VI chain back from the equal device, the use of the process can always keep both sides of the tile from the equal , Safe to avoid the distance from the uneven side of the brake pad floating floating brake disc phenomenon, and no tile automatically with the device.
The main swing hinge are self-lubricating bearings, transmission efficiency, long life, no lubrication in the use of the process;
Brake spring is arranged in the square spring tube; bin on the side with a braking torque scale, direct braking torque display, easy to adjust intuitive;
Asbestos brake pad wear automatic compensation device, can make the tile away from the brake torque and the use of the process to maintain a constant;
Some additional functions can be implemented by adding additional devices;
Manual release device;
Release and close the limit switch, the brake can be achieved whether the normal release or closed signal display;
Brake pad wear limit limit switch, brake pads can be achieved to wear the limit when the automatic signal display;
With the delay series of Ed series of pushers, brake delay can be achieved, the brake is stable.


Conditions of Use:
Ambient temperature -20 ℃ - + 50 ℃
Air relative temperature: no more than 90%
Generally used for three-phase AC power supply 50Hz, 380V (according to the need to produce 60Hz different voltage, please specify when ordering)
Use points in the altitude in line with GB755-2000 file below -20 ℃, the pusher working oil to switch to YH-10 aviation hydraulic oil or according to the requirements of heaters
Outdoor rain and snow erosion or corrosive gases and media should be used anti-corrosion products
